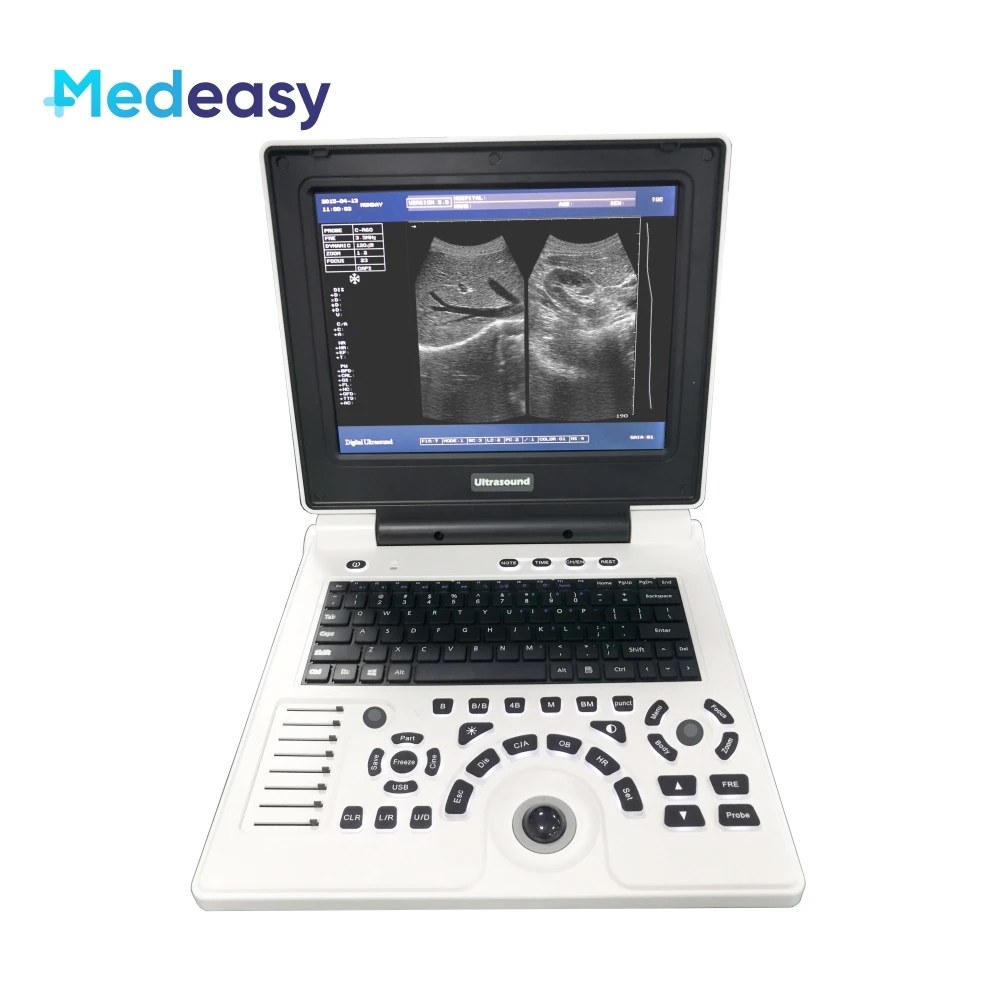

Medeasy 12-inch portable notebook B ultrasound scanner — full-digital diagnostic echo machine.
Laptop-style portable B/W ultrasound system for clinical and veterinary imaging. Photos and listing details from AliExpress item 1005007912070702 (https://a.aliexpress.com/_EIV58Ui).
Identified from product photos:
• Brand: Medeasy

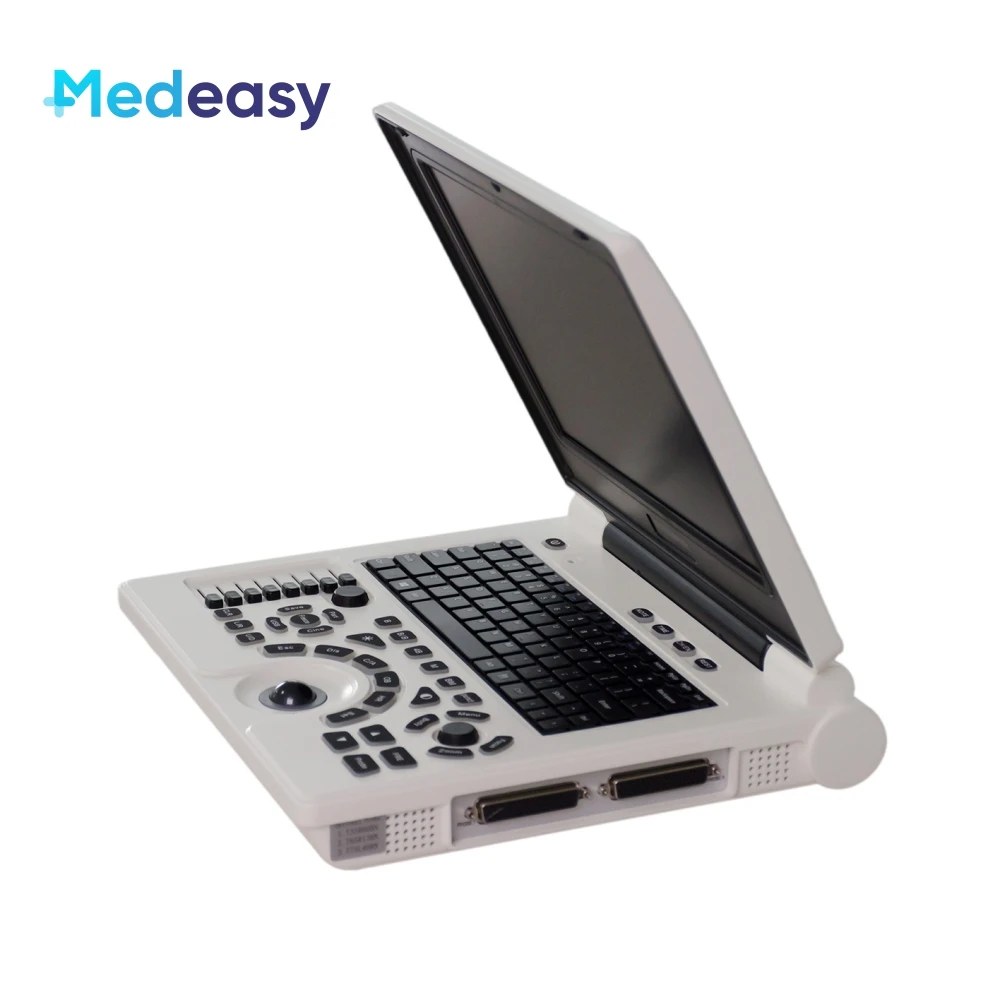

• Form factor: clamshell notebook / laptop ultrasound console

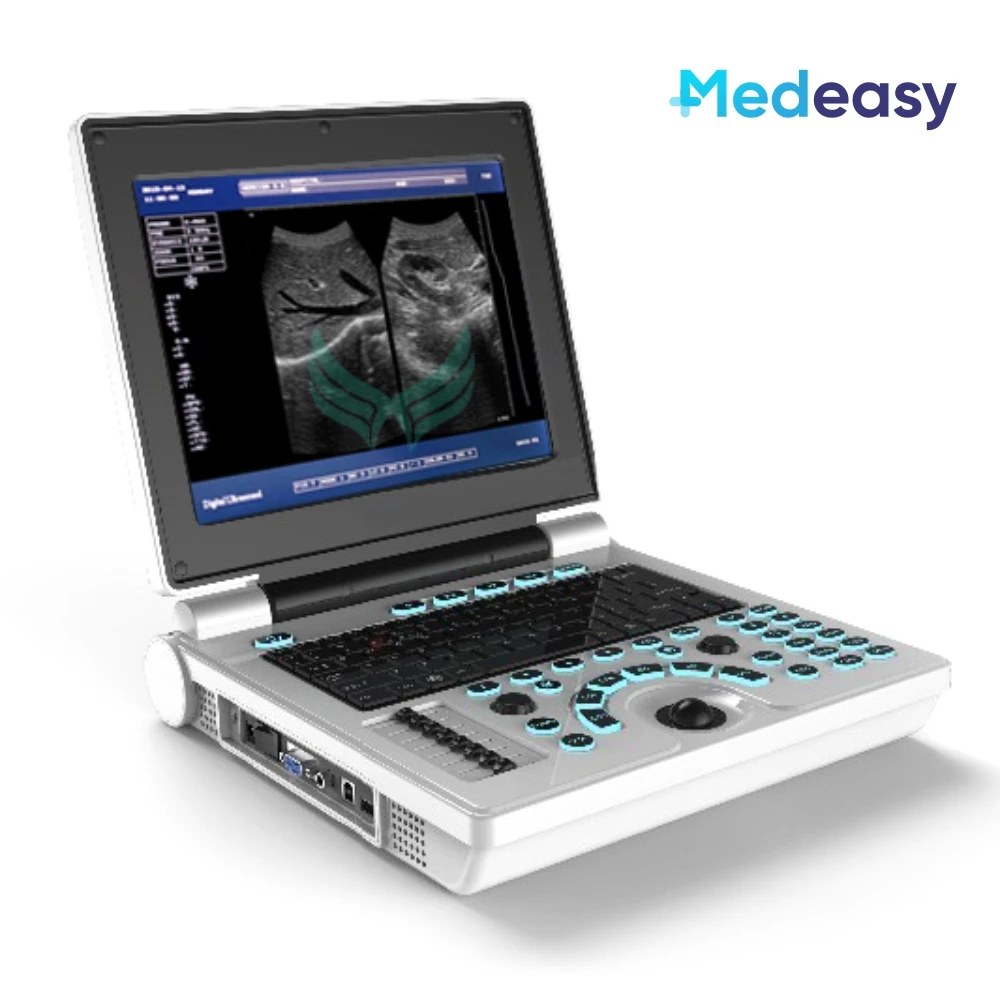

• Display: ~12" LCD with on-screen patient/hospital fields and scan parameters
• Imaging modes (panel): B, B/B, 4B, M, BM
• Example on-screen probe: C-A60 convex, 3.5 MHz
• Dynamic range shown up to 120 dB; zoom and multi-focus controls
• 8-segment TGC sliders
• Integrated QWERTY keyboard + trackball navigation
• Measurement / clinical keys: OB, HR, Dis (distance), C/A (circumference/area)
• Workflow: Freeze, Save, Cine, USB, Zoom, Focus, Probe select, CH/EN language

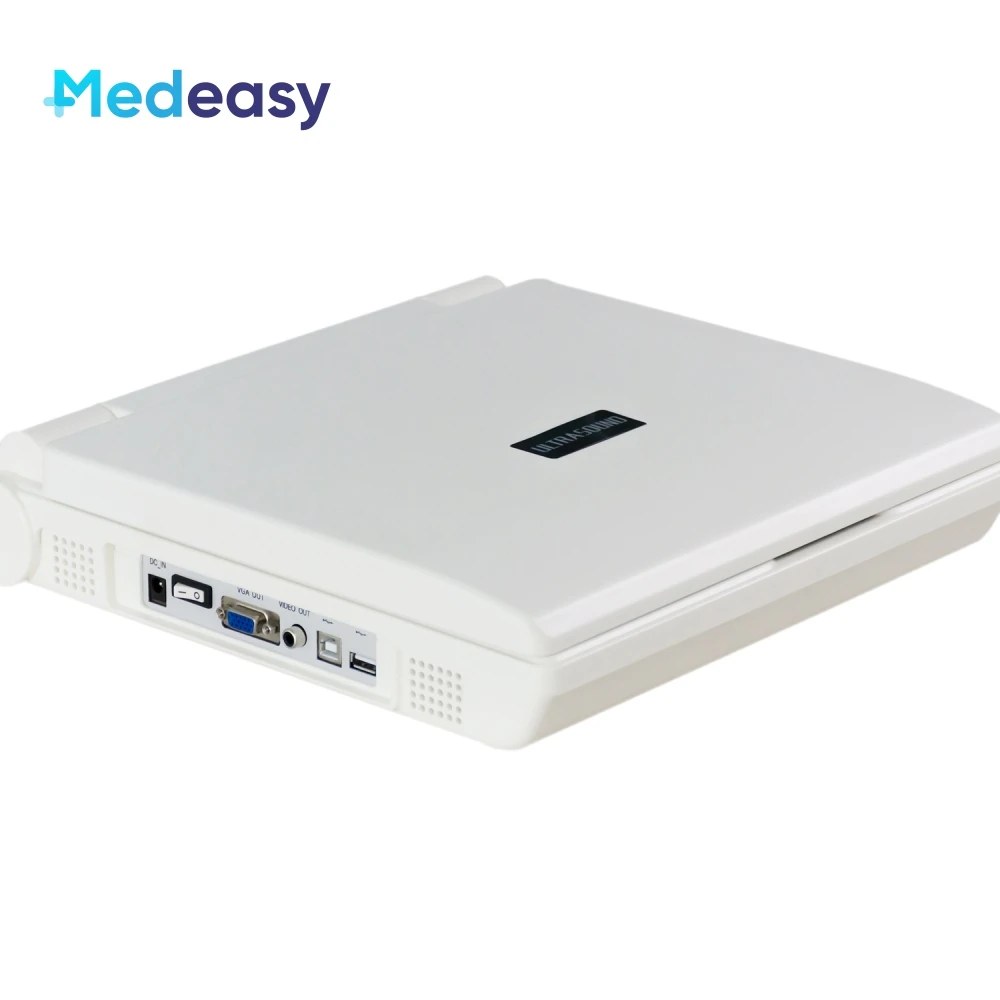

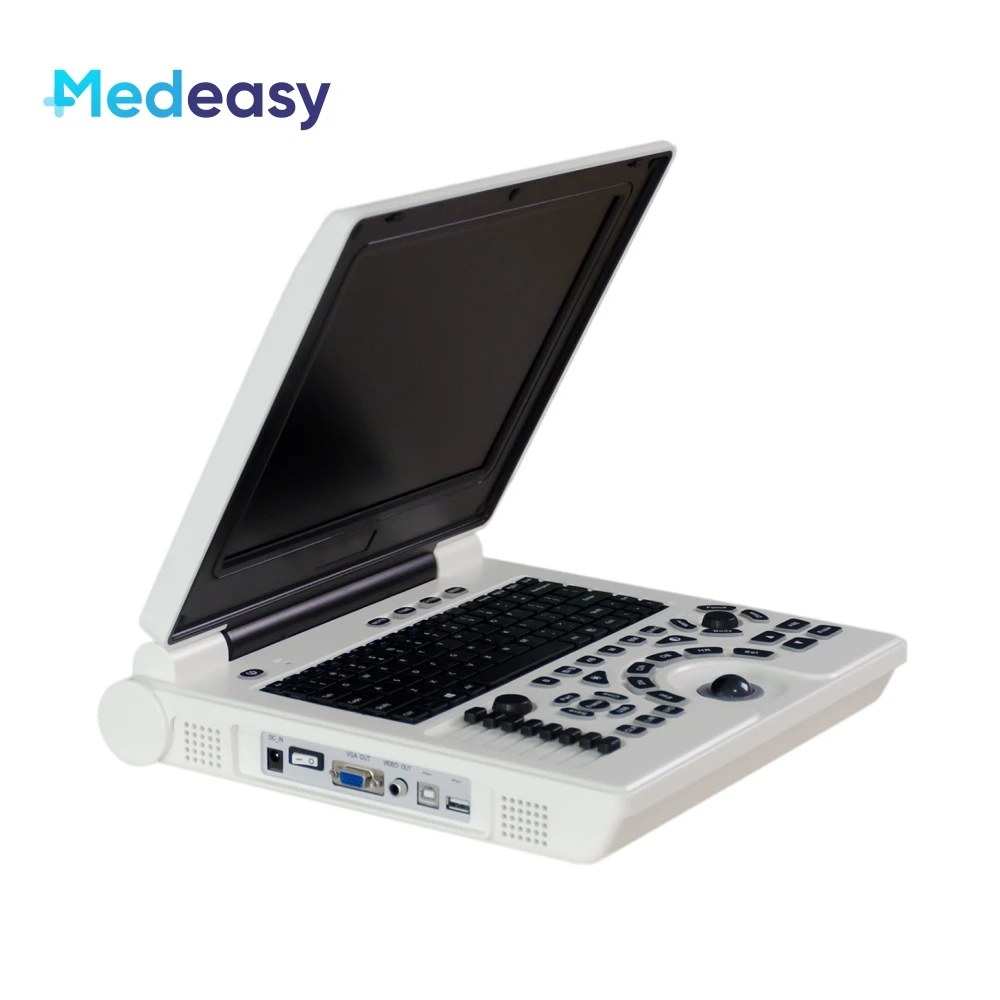

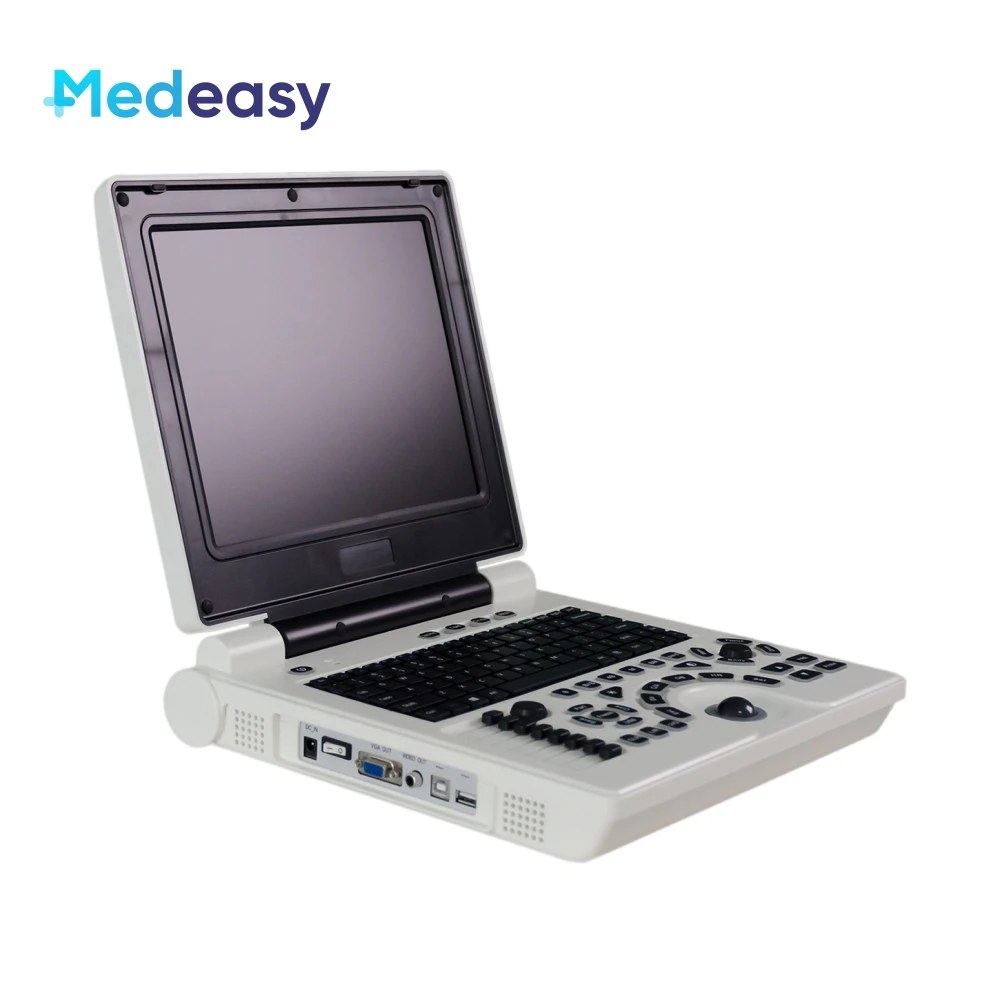

• Side I/O (as pictured): DC IN, power switch, VGA OUT, VIDEO OUT, USB
• Dual probe connectors on the opposite side (as pictured)
Typical use: abdomen, OB/GYN and general B-mode diagnostics in clinic or field settings.
Sold by TRSinnovation. Use Buy now to request purchase by email.
